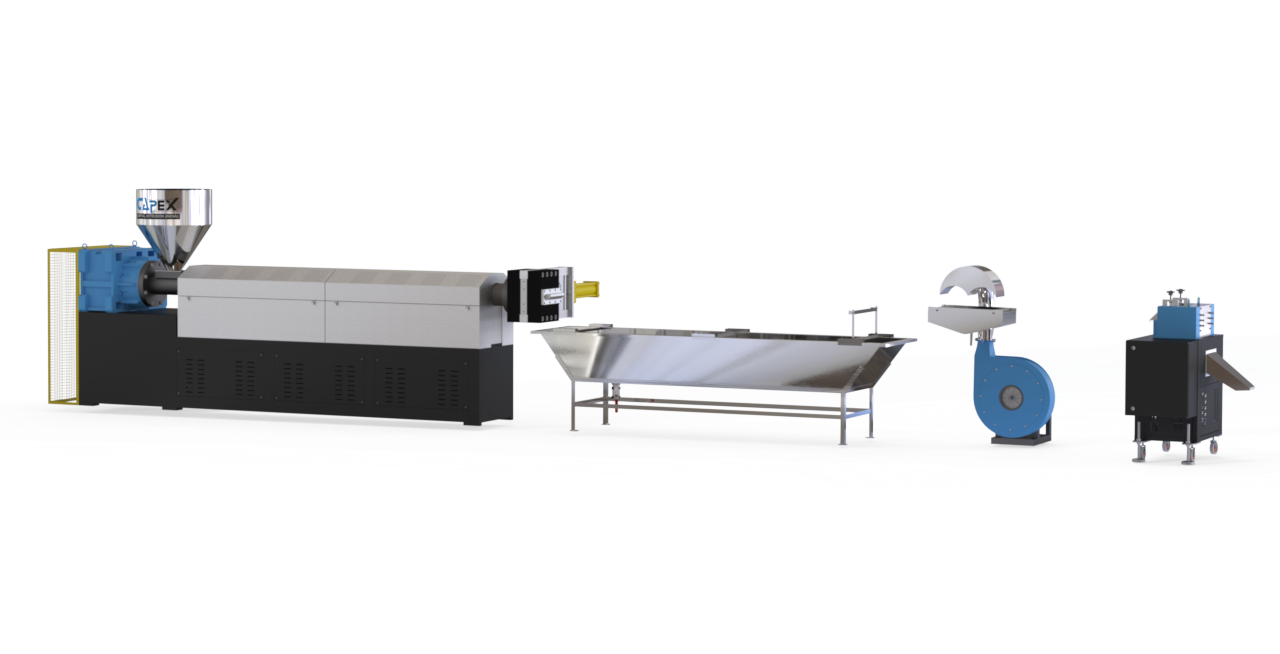

SINGLE SCREW EXTRUDER MACHINE

Model	SCREW DIA (mm)	L/d Ratio	SCREW RPM	TOTAL LOAD (KW) MAIN MOTOR (KW)	PRODUCTION Kg/hr.
CVS75 R26	75	26/1	55-65	27 / 15	70/80
CVS90 R24	90	24/1	55-65	35 / 20	90/100
CVS90 R26	90	26/1	55-65	45 / 25	90/100
CVS100 R24	100	24/1	55-65	52 / 30	110/125
CVS100 R26	100	26/1	55-65	56 / 30	110/125
CVS115 R24	115	24/1	55-65	60 / 30	140/160
CVS115 R26	115	26/1	55-65	70 / 37	140/160
CVS120 R26	120	26/1	55-65	85 / 45	170/190
CVS125 R26	125	26/1	55-65	100 / 55	225/250
CVS140 R26	140	26/1	55-65	115 / 75	275/290
CVS150 R26	150	26/1	55-65	135 / 90	320/340
CVS160 R26	160	26/1	55-65	160 / 110	400/425

                        Model
                          SCREW DIA
(mm)

                          L/d Ratio
                          SCREW RPM
                          TOTAL LOAD (KW)
 MAIN MOTOR (KW)

                          PRODUCTION

  Kg/hr.



CVS75 R26

26/1

55-65

27 / 15

70/80

CVS90 R24

24/1

55-65

35 / 20

90/100

CVS90 R26

26/1

55-65

45 / 25

90/100

CVS100 R24

100

24/1

55-65

52 / 30

110/125

CVS100 R26

100

26/1

55-65

56 / 30

110/125

CVS115 R24

115

24/1

55-65

60 / 30

140/160

CVS115 R26

115

26/1

55-65

70 / 37

140/160

CVS120 R26

120

26/1

55-65

85 / 45

170/190

CVS125 R26

125

26/1

55-65

100 / 55

225/250

CVS140 R26

140

26/1

55-65

115 / 75

275/290

CVS150 R26

150

26/1

55-65

135 / 90

320/340

CVS160 R26

160

26/1

55-65

160 / 110

400/425

CVS Series Single Screw Extruders | Industry-Leading Extrusion Technology

High-Performance Single Screw Extruders for Precision Manufacturing

The CVS Series Single Screw Extruders represent the most basic extrusion, combining reliability, efficiency, and precision with cost-effectiveness for manufacturers across diverse industries. Engineered for excellence, our single screw extruders deliver consistent quality and outstanding performance in every application.

Key Features of the CVS Series Single Screw Extruders

Advanced Screw Design Technology

Optimized compression ratios for superior material processing
Specialized geometry for enhanced mixing and homogenization
Wear-resistant materials for extended operational lifespan
Custom configurations available for specific material requirements

Superior Temperature Control Systems

Multi-zone heating for precise temperature management
Advanced PID controllers ensuring stable processing conditions
Uniform heat distribution across the barrel
Rapid heating and cooling capabilities for efficient production cycles

Robust Drive Mechanism

High-torque gearbox for consistent power delivery
Energy-efficient motor systems reducing operational costs
Variable speed control for process optimization
Heavy-duty thrust bearings supporting maximum load capacities

User-Friendly Control Interface

Most Basic user interface for cost effectiveness & reliability

Applications Across Industries

Plastic Processing: Film extrusion, pipe and profile manufacturing, sheet production
Recycling: Post-consumer and post-industrial plastic processing

The CVS Series Advantage

Energy Savings: Advanced motor and heating systems reducing power consumption
Consistency: Superior mixing capability ensuring homogeneous product quality
Versatility: Easily adaptable for different materials and processing requirements
Reliability: Engineered for continuous operation with minimal downtime

Support and Service

Comprehensive installation and commissioning
Operator training programs
Preventive maintenance packages
Rapid response technical support
Ready spare parts availability

Contact Our Extrusion Specialists

Ready to elevate your production capabilities? Our technical team is available to discuss your specific requirements and recommend the ideal CVS Series extruder configuration for your application.
