High Speed Recycling Extruder

Model	SCREW DIA (mm)	L/d Ratio	SCREW RPM	TOTAL LOAD (KW) MAIN MOTOR (KW)	PRODUCTION Kg/hr.	DIMENSION L/W (MM)
CXTR90 R24	90	24/1	60	45 / 22	125-150	6085/3400
CXTR90 R26	90	26/1	60	50 / 22	125-150	6270/3400
CXTR100 L84	100	22/1	60	45 / 22	200-250	6060/3400
CXTR100 R24	100	24/1	60	55 / 30	200-250	6325/3400
CXTR100 R26	100	26/1	60	60 / 30	200-250	6525/3400
CXTR115 R24	115	24/1	60	60 / 30	300-350	7425/3550
CXTR115 R26	115	26/1	60	65 / 30	300-350	7650/3550
CXTR120 R26	120	26/1	55	72 / 37	350-375	8525/3875
CXTR125 R24	125	24/1	60	80 / 45	425-450	8200/3875
CXTR125 R26	125	26/1	60	85 / 45	425-450	8650/3875

                        Model
                          SCREW DIA
(mm)

                          L/d Ratio
                          SCREW RPM
                          TOTAL LOAD (KW)
 MAIN MOTOR (KW)

                          PRODUCTION

  Kg/hr.
                          DIMENSION

  L/W (MM)



CXTR90 R24

24/1

45 / 22

125-150

6085/3400

CXTR90 R26

26/1

50 / 22

125-150

6270/3400

CXTR100 L84

100

22/1

45 / 22

200-250

6060/3400

CXTR100 R24

100

24/1

55 / 30

200-250

6325/3400

CXTR100 R26

100

26/1

60 / 30

200-250

6525/3400

CXTR115 R24

115

24/1

60 / 30

300-350

7425/3550

CXTR115 R26

115

26/1

65 / 30

300-350

7650/3550

CXTR120 R26

120

26/1

72 / 37

350-375

8525/3875

CXTR125 R24

125

24/1

80 / 45

425-450

8200/3875

CXTR125 R26

125

26/1

85 / 45

425-450

8650/3875

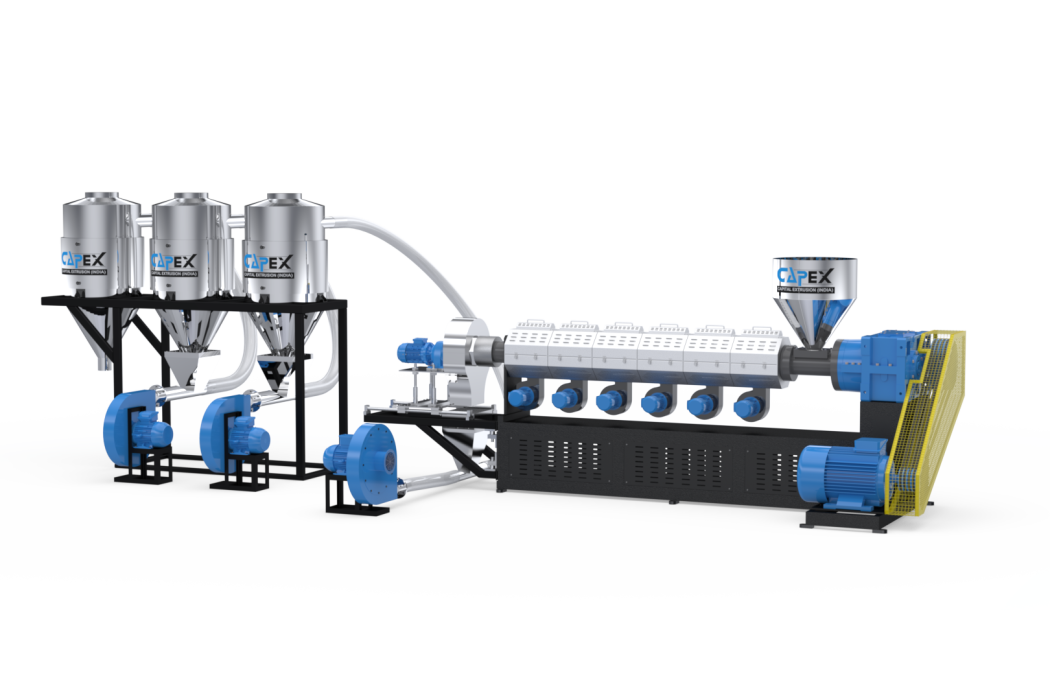

CXTR Series Extruder Machines | Industry-Leading Performance & Reliability

Advanced Compounding Solution for PVC Compounding

The CXTR Series represents the pinnacle of extrusion technology, engineered to deliver superior performance, exceptional reliability, and unmatched production efficiency for PVC compounding applications in Shoe, Agriculture, and Wire & Cable industries.

Why Choose CXTR Series Extruder Machines?

Superior Processing Capabilities

Industry-leading output rates of 100-600 kg/hour
Precise temperature control across multiple zones
Advanced screw geometry for optimal material processing
Enhanced mixing capabilities for consistent product quality

Versatile Application Range

Polymer processing and plastic compounding
Food production and pharmaceutical applications
Specialty chemical production

Cost-Effective Operation

Energy-efficient design reduces power consumption by up to 30%
Quick material changeover minimizes downtime
Wear-resistant components extend service intervals
Intuitive control systems optimize production parameters

Technical Specifications

Machine Configuration Options

Single and twin screw configurations available
L/D ratios from 22:1 to 28:1
Customizable screw designs for specific application requirements
High-torque gearbox options for demanding materials

Control & Automation

Remote monitoring and control capabilities
Production data logging and analysis
Integration with existing production systems

Quality Assurance

Manufactured to international standards
Comprehensive testing before delivery
CE certification available
Full documentation package included

Customer Support Services

Expert installation and commissioning
Comprehensive operator training
Scheduled maintenance programs
24/7 technical support
Rapid spare parts delivery

Success Stories

Our CXTR Series extruders have helped manufacturers across various industries achieve breakthrough improvements in production efficiency, product quality, and operational costs.

Contact Our Extrusion Experts

Schedule a consultation to discuss your specific manufacturing requirements and discover how the CXTR Series can transform your production capabilities.

Request a Quote
